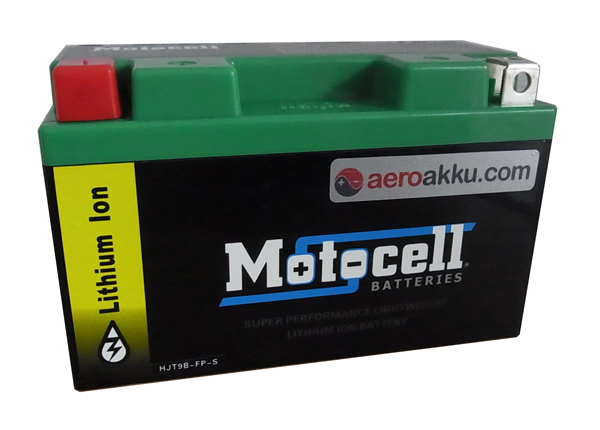

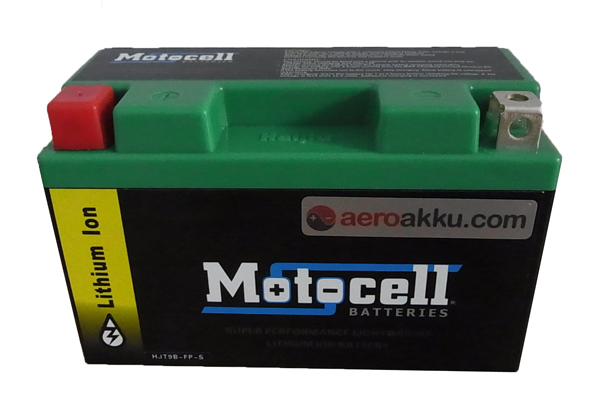

MOTO CELL LFP 155 - lithium iron phosphate (LiFePO4) battery 12V / 155A CCA / 2,7 Ah (C1)

The brand new MOTOCELL starter battery LiFePO4 series of new technology!

• Super light: tremendous weight savings with only about 30% by weight of a conventional lead-acid battery!
• Big: conventional lead-acid batteries can only provide about 30% of their total capacity for engine start, the new MOTO CELL LiFePO4 batteries make 100% capacity for start!
• Universal: The integrated charging electronics (PCM / passive balancing) easily usable as a substitute for lead, no external balancing required!
• simple: well-known ports and body size as the standard battery! Installable in any position!
• fast charging 90% of capacity after a few minutes! No memory effect!
• firm: almost no self-discharge more compatible and 1 year service life!
• durable and therefore cost: up to 2,000 recharges!
• Safe: non-explosive and non-flammable by the latest LiFePO4 technology!
• Environmentally friendly: no heavy metals (lead), and no acid required!
• The capacity (Ah) at constant current output is inherently about a third of a comparable lead-acid battery. But the decisive factor is the launch power: He is two to three times of that of a lead battery.
• When using in cold weather should be noted that the performance decreases with LiFePO4 battery, the battery for a few minutes to warm up briefly as by current consumption at temperatures below 0 ° C (the cells inside the battery to activate itself) enough to have the full power available. Different principle than the lead acid battery!

Specifications:

Nominal voltage: 12.8 V
Capacity: 4.6 Ah (C1)
CCA: 155 CCA (cold current from the corresponding lead / GEL batteries: 90 CCA)
Standard charging current: 4 A
Fast charge: up to 25 A
Charging Voltage: 14.4 - 14,6 V  (CCCV)
Operating voltage range: 8V to 14.4V
Operating temperature: Discharge: -15 to +50 ° C
Storage temperature range: -20 to +70 °
Pole arrangement: + -
Dimensions (LxWxH): 150x65x92 mm
Weight: 705g

Ideal for ultralight aircraft with small two-stroke or small four stroke engines, or for motorglider with retractable engine and turbos.

Suitable chargers, see LiFePO4 charger

For use with larger battery compartments are spacers to adjust the altitude into the package
