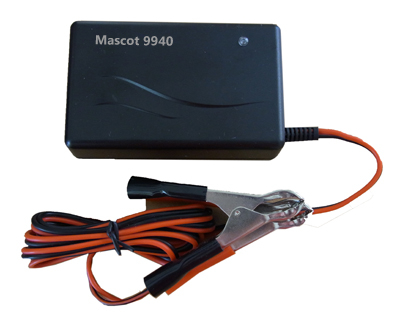

MASCOT 9940 3-step lead acid charger 2,3A

Microprocessor controlled desktop charger for all lead acid batteries (acid, AGM, Gel)

• 3-step charge control with timer
• Universal input voltage (90-264 VAC)
• 2-pin IEC 320 mains connector
• Mounting bracket available
• Exchangeable DC plugs
• Waterproof (IP67) version available
• Approvals:
   Medically certified (EN 60601)
   UL approved (UL 60601-1)

Technical Data:

Line regulation: < 100 mV
Switch frequency, approx.: 45 kHz
Leakage current with mains disconnected:< 200 uA
Temperature range: -10 °C - +40 °C
Efficiency (at 100% load): Virkningsgrad (ved 100% last): > 80 %
Charge Current:  2,3 A ± 0,3
Protection: Mains fuse
Automatically resettable fuse protects the charger against wrong polarity.
Insulation class: II
Electrical safety: EN 60601, EN 60950, EN 60335, UL 60601-1
Indicator: 3-color LED
• Orange: (const. current, boost): 2,3 A
• Yellow: (const. voltage, timer): 14,7 V
• Green: (const. voltage, float): 13,8 V
Timer: 2h ± 30%
Input: Euro cord
Output terminals: Battery clips
Dimensions (L×W×H): 107 × 67 × 36,5 mm
Weight: 250 g
