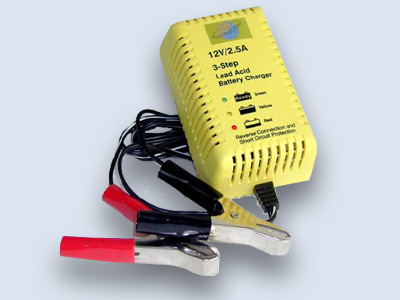

AUTOMATIC PLUG-IN CHARGER FOR LEAD ACID BATTERIES 12V / 2,5A

EBL20-CHARGERS are automatic high efficiency 3-step battery chargers for charging lead acid batteries.

Characteristics:

* switched mode Battery Charger
* automatic operation with optimised charging process
* high efficiency
* compact design and 230V voltage supply
* protected against short circuit and polarity reversal
* function and diagnostic display with three LED

Function:

The charger operates accordingly to the IUoU charging characteristics. The charging process starts with constant current phase (I) up to the pre-set charging voltage (U1), followed by the timed constant voltage phase (U1) and ends with the trickle charge (U2).

Technical data:

Operating voltage: 230V~ 50Hz
Charging current: max. 2,5A
Battery voltage: 12V
End of charge voltage U1: 14,5 V
Trickle charge U2: 13,6 V
Weight with leads: 275g
